AUFBAUSTRAHLER TUBE-LIGHT-MIDI LED-COB

26009 | 26018 | 26030 | 26035 | 26040

Optische Leichtigkeit, “state of the art” Lichttechnik.
Der TUBE-LIGHT-MIDI ist ein eingehäusiger Stromschienenstrahler
für die 3-Phasen-Stromschiene und als solcher unser modernster Strahler.
Mit seiner hocheffizienzten LED-COB Lichttechnik
ist er ein ideales Instrument zur Akzent- und Grundbeleuchtung.

Der TUBE-LIGHT-MIDI kommt ohne speratem Treiberkasten aus
und ist mit bis zu 40W ein außergewöhnlich powervoller Vertreter
der Tube-Strahler mit integriertem Treiber.

Alle Leuchten aus der Serie TUBE-LIGHT werden mit dem passenden Zubehör
(3~ Universal-Adapter / Wand- / Deckenrosette / Haken für Rasterdecke / Pendel)
und integriertem EVG geliefert.

Die Standardgehäusefarben sind Schwarz (RAL 9005), Aluminium-Silber (RAL 9006)
und Weiß (RAL 9016). Sonderfarben sind ebenfalls realisierbar.

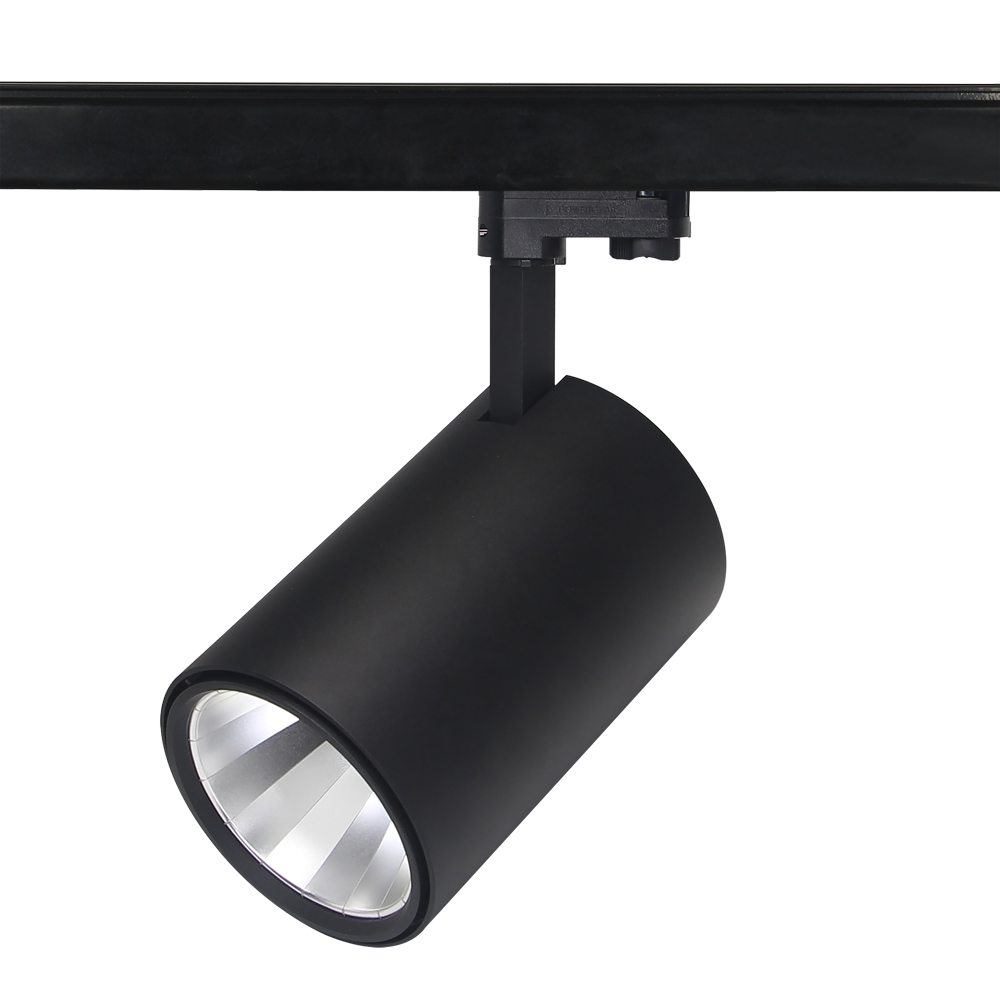

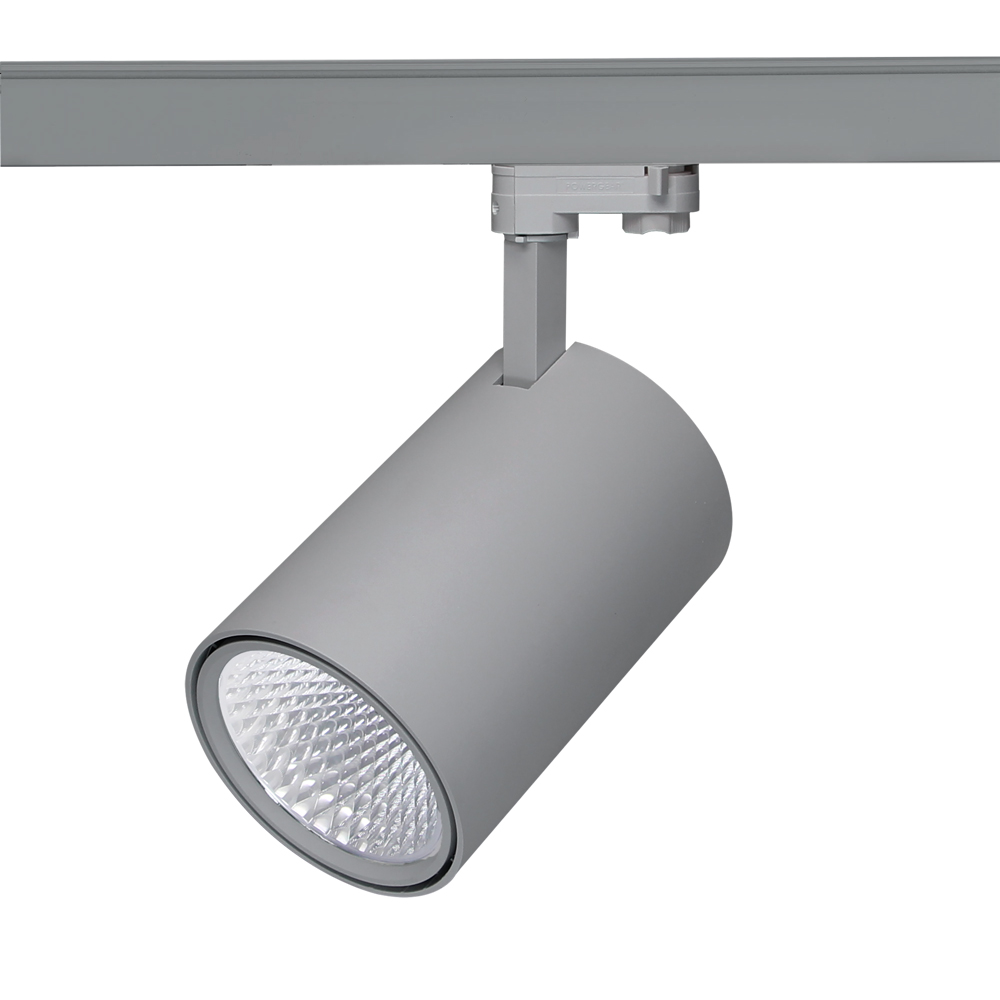

   Schwarz                  Alu-Silber                  Weiß

TECHNISCHE DATEN –  AUFBAUSTRAHLER TUBE-LIGHT-MIDI LED-COB

• LED-COB Platine: Zhaga konform
• LED-COB Modul: verschraubt und wechselbar
• Gesamtanschlussleistungen: 7,9W / 11,1W / 16,2W / 23,0W / 26,5W / 31,0W / 35,5W
• Ø Systemeffizienz: 177lm/W (max. 209lm/W)¹
• Lichtfarben: 2700K / 3000K / 3100K / 3200K / 3500K / 4000K / 5000K
• Sonderlichtfarben: Backwaren / Obst & Gemüse / Fisch / Fleisch / Textilien / Drogerien
• Abstrahlwinkel: 15° / 20° / 38° / *60° a.A.
• Farbwiedergaben: CRI>85 / CRI>95
• Farbkonsistenz: 2-fach MacAdam ab 50.000h 3-fach MacAdam
• Versorgungsspannung: 230V/50Hz
• Lebensdauer: > 50.000h L90 / F10
• Reflektorart: Gefaltet und blendfrei
• Reflektormaterial: 99,99% Reinstaluminium
• Reflektor-Wirkungsgrad: Ø 97%
• Kühlkörper: Alu (Tc 58°) Passivkühlung
• Gehäuse: Alu Druckguss

SICHERHEIT

• Sicherheitsnorm: CE, F
• Schutzklasse: II
• Schutzart: IP20
• Garantie: 5 Jahre (Verlängerung auf 8 Jahre möglich)

1 Mit aktuell bis zu 211lm/W Systemeffizienz stehen unsere LED-COB Leuchten an der Spitze der Energieeffizienz am Markt.
Diese Werte erreichen wir durch beste LED-Platinen, verlustarme Vorschaltgeräte, ein hocheffizientes Thermomanagement
und eigens entwickelte Hochleistungsreflektoren, deren Wirkungsgrade nahe am physikalischen Maximum liegen.

Die Systemeffizienz gibt die Lichtausbeute an, die die Leuchte abzüglich aller mindernden Faktoren (Vorschaltgerät, Verlustleistung der Lichtquelle und den Streuverlust durch den Reflektor) erzielt.

Lichtstrom und Systemeffizienz ist abhängig von der gewählten Wattage, der Lichtfarbe und der gewünschten Farbwiedergabe.
Eine detailliert Auskunft über • Lichtstrom und • Systemeffizienz ist dem Datenblatt mit seiner Auflistung der Konstellationsmöglichkeiten zu entnehmen.

Hier Produktdatenblatt TUBE-LIGHT-MIDI-1.HJ.2019-web herunterladen

Datenblatt TUBE-LIGHT-MIDI-1.HJ.2019-web



Hier Produktdatenblatt TUBE-LIGHT-MIDI-1.HJ.2019-web-mobile herunterladen

Datenblatt TUBE-LIGHT-MIDI-1.HJ.2019-web-mobile

MAßE – AUFBAUSTRAHLER TUBE-LIGHT-MIDI LED-COB

Leuchtendurchmesser: 130mm
Leuchtenhöhe: 200mm
Gesamthöhe mit Adapter: 256mm
Gewicht: 1,2kg
Schwenkbarkeit: 270°
Drehbarkeit: 355°

LICHTWERTE STANDARDLICHTFARBEN – TUBE-LIGHT-MIDI LED-COB

Leistung
(Gesamtanschluss)
Lichtfarbe Korrelierte
Farbtemperatur
Farbwiedergabe Lichtstrom
(System)
Lichtausbeute
(System)

7,9W – 250mA sehr warmweiß 2700K CRI>82 1423lm 180lm/W
warmweiß 3000K CRI>85 1501lm 190lm/W
perlweiß 3100K CRI>85 1483lm 188lm/W
klarweiß 3200K CRI>85 1478lm 187lm/W
brillantweiß 3500K CRI>85 1490lm 189lm/W
neutralweiß 4000K CRI>85 1543lm 195lm/W
kaltweiß 5000K CRI>85 1553lm 197lm/W
kaltweiß max. Effizienz 5000K CRI>70 1651lm 209lm/W

11,1W – 350mA sehr warmweiß 2700K CRI>82 1961lm 177lm/W
warmweiß 3000K CRI>85 2068lm 186lm/W
perlweiß 3100K CRI>85 2044lm 184lm/W
klarweiß 3200K CRI>85 2037lm 184lm/W
brillantweiß 3500K CRI>85 2053lm 185lm/W
neutralweiß 4000K CRI>85 2126lm 192lm/W
kaltweiß 5000K CRI>85 2140lm 193lm/W
kaltweiß max. Effizienz 5000K CRI>70 2274lm 205lm/W

16,2W – 500mA sehr warmweiß 2700K CRI>82 2752lm 170lm/W
warmweiß 3000K CRI>85 2901lm 179lm/W
perlweiß 3100K CRI>85 2867lm 177lm/W
klarweiß 3200K CRI>85 2858lm 176lm/W
brillantweiß 3500K CRI>85 2881lm 178lm/W
neutralweiß 4000K CRI>85 2984lm 184lm/W
kaltweiß 5000K CRI>85 3003lm 185lm/W
kaltweiß max. Effizienz 5000K CRI>70 3191lm 197lm/W

19,6W – 600mA sehr warmweiß 2700K CRI>82 3268lm 167lm/W
warmweiß 3000K CRI>85 3445lm 176lm/W
perlweiß 3100K CRI>85 3405lm 174lm/W
klarweiß 3200K CRI>85 3394lm 173lm/W
brillantweiß 3500K CRI>85 3421lm 175lm/W
neutralweiß 4000K CRI>85 3542lm 181lm/W
kaltweiß 5000K CRI>85 3566lm 182lm/W
kaltweiß max. Effizienz 5000K CRI>70 3789lm 193lm/W

23,0W – 700mA sehr warmweiß 2700K CRI>82 3774lm 164lm/W
warmweiß 3000K CRI>85 3979lm 173lm/W
perlweiß 3100K CRI>85 3933lm 171lm/W
klarweiß 3200K CRI>85 3920lm 170lm/W
brillantweiß 3500K CRI>85 3952lm 172lm/W
neutralweiß 4000K CRI>85 4091lm 178lm/W
kaltweiß 5000K CRI>85 4119lm 179lm/W
kaltweiß max. Effizienz 5000K CRI>70 4377lm 190lm/W

26,5W – 800mA sehr warmweiß 2700K CRI>82 4271lm 161lm/W
warmweiß 3000K CRI>85 4504lm 170lm/W
perlweiß 3100K CRI>85 4451lm 168lm/W
klarweiß 3200K CRI>85 4436lm 167lm/W
brillantweiß 3500K CRI>85 4472lm 169lm/W
neutralweiß 4000K CRI>85 4631lm 175lm/W
kaltweiß 5000K CRI>85 4661lm 176lm/W
kaltweiß max. Effizienz 5000K CRI>70 4953lm 187lm/W

31,0W – 925mA sehr warmweiß 2700K CRI>82 4879lm 157lm/W
warmweiß 3000K CRI>85 5144lm 166lm/W
perlweiß 3100K CRI>85 5085lm 164lm/W
klarweiß 3200K CRI>85 5067lm 163lm/W
brillantweiß 3500K CRI>85 5108lm 165lm/W
neutralweiß 4000K CRI>85 5289lm 171lm/W
kaltweiß 5000K CRI>85 5324lm 172lm/W
kaltweiß max. Effizienz 5000K CRI>70 5658lm 183lm/W

35,5W – 1050mA sehr warmweiß 2700K CRI>82 5472lm 154lm/W
warmweiß 3000K CRI>85 5769lm 162lm/W
perlweiß 3100K CRI>85 5702lm 161lm/W
klarweiß 3200K CRI>85 5682lm 160lm/W
brillantweiß 3500K CRI>85 5729lm 161lm/W
neutralweiß 4000K CRI>85 5932lm 167lm/W
kaltweiß 5000K CRI>85 5970lm 168lm/W
kaltweiß max. Effizienz 5000K CRI>70 6345lm 179lm/W
* Farbgenauigkeit: 2-fach MacAdam; 3-fach MacAdam Farbverschiebung nach 50.000 Std.
** DALI-Dimmung, sowie höhere Leistungen, auf Anfrage möglich.

LICHTWERTE SONDERLICHTFARBEN – TUBE-LIGHT-MIDI LED-COB

Leistung
(Gesamtanschluss)
Farbe Korrelierte
Farbtemperatur
Farbwiedergabe Lichtstrom
(System)
Lichtausbeute
(System)

7,9W – 250mA sehr warmweiß 2700K CRI>95 1224lm 155lm/W
warmweiß 3000K (below BBL) CRI>95 1261lm 160lm/W
perlweiß 3100K CRI>95 1274lm 161lm/W
klarweiß 3200K CRI>95 1281lm 162lm/W
brillantweiß 3500K (below BBL) CRI>95 1300lm 165lm/W
neutralweiß 4000K (below BBL) CRI>95 1335lm 169lm/W
Brot- & Backwaren 2445K CRI>92 994lm 126lm/W
meat / pink effect 2000K CRI>82 727lm 92lm/W
meat / white effect 4000K CRI>82 782lm 99lm/W

11,1W – 350mA sehr warmweiß 2700K CRI>95 1686lm 152lm/W
warmweiß 3000K (below BBL) CRI>95 1737lm 157lm/W
perlweiß 3100K CRI>95 1755lm 158lm/W
klarweiß 3200K CRI>95 1765lm 159lm/W
brillantweiß 3500K (below BBL) CRI>95 1791lm 161lm/W
neutralweiß 4000K (below BBL) CRI>95 1839lm 166lm/W
Brot- & Backwaren 2445K CRI>92 1386lm 125lm/W
meat / pink effect 2000K CRI>82 1002lm 90lm/W
meat / white effect 4000K CRI>82 1078lm 97lm/W

16,2W – 500mA sehr warmweiß 2700K CRI>95 2366lm 146lm/W
warmweiß 3000K (below BBL) CRI>95 2438lm 150lm/W
perlweiß 3100K CRI>95 2462lm 152lm/W
klarweiß 3200K CRI>95 2477lm 153lm/W
brillantweiß 3500K (below BBL) CRI>95 2513lm 155lm/W
neutralweiß 4000K (below BBL) CRI>95 2580lm 159lm/W
Brot- & Backwaren 2445K CRI>92 1983lm 122lm/W
meat / pink effect 2000K CRI>82 1406lm 87lm/W
meat / white effect 4000K CRI>82 1512lm 93lm/W

19,6W – 600mA sehr warmweiß 2700K CRI>95 2809lm 143lm/W
warmweiß 3000K (below BBL) CRI>95 2895lm 148lm/W
perlweiß 3100K CRI>95 2924lm 149lm/W
klarweiß 3200K CRI>95 2941lm 150lm/W
brillantweiß 3500K (below BBL) CRI>95 2984lm 152lm/W
neutralweiß 4000K (below BBL) CRI>95 3064lm 156lm/W
Brot- & Backwaren 2445K CRI>92 2354lm 120lm/W
meat / pink effect 2000K CRI>82 1669lm 85lm/W
meat / white effect 4000K CRI>82 1795lm 92lm/W

23,0W – 700mA sehr warmweiß 2700K CRI>95 3244lm 141lm/W
warmweiß 3000K (below BBL) CRI>95 3344lm 145lm/W
perlweiß 3100K CRI>95 3377lm 147lm/W
klarweiß 3200K CRI>95 3397lm 148lm/W
brillantweiß 3500K (below BBL) CRI>95 3447lm 150lm/W
neutralweiß 4000K (below BBL) CRI>95 3539lm 154lm/W
Brot- & Backwaren 2445K CRI>92 2716lm 118lm/W
meat / pink effect 2000K CRI>82 1928lm 84lm/W
meat / white effect 4000K CRI>82 2074lm 90lm/W

26,5W – 800mA sehr warmweiß 2700K CRI>95 3672lm 139lm/W
warmweiß 3000K (below BBL) CRI>95 3784lm 143lm/W
perlweiß 3100K CRI>95 3822lm 144lm/W
klarweiß 3200K CRI>95 3844lm 145lm/W
brillantweiß 3500K (below BBL) CRI>95 3901lm 147lm/W
neutralweiß 4000K (below BBL) CRI>95 4005lm 151lm/W
Brot- & Backwaren 2445K CRI>92 3077lm 116lm/W
meat / pink effect 2000K CRI>82 2182lm 82lm/W
meat / white effect 4000K CRI>82 2347lm 89lm/W

31,0W – 925mA sehr warmweiß 2700K CRI>95 4194lm 135lm/W
warmweiß 3000K (below BBL) CRI>95 4322lm 139lm/W
perlweiß 3100K CRI>95 4365lm 141lm/W
klarweiß 3200K CRI>95 4391lm 142lm/W
brillantweiß 3500K (below BBL) CRI>95 4456lm 144lm/W
neutralweiß 4000K (below BBL) CRI>95 4575lm 148lm/W
Brot- & Backwaren 2445K CRI>92 3496lm 113lm/W
meat / pink effect 2000K CRI>82 2492lm 80lm/W
meat / white effect 4000K CRI>82 2681lm 86lm/W

35,5W – 1050mA sehr warmweiß 2700K CRI>95 4703lm 132lm/W
warmweiß 3000K (below BBL) CRI>95 4847lm 137lm/W
perlweiß 3100K CRI>95 4895lm 138lm/W
klarweiß 3200K CRI>95 4924lm 139lm/W
brillantweiß 3500K (below BBL) CRI>95 4997lm 141lm/W
neutralweiß 4000K (below BBL) CRI>95 5131lm 145lm/W
Brot- & Backwaren 2445K CRI>92 3919lm 110lm/W
meat / pink effect 2000K CRI>82 2795lm 79lm/W
meat / white effect 4000K CRI>82 3006lm 85lm/W

* Farbgenauigkeit: 2-fach MacAdam; 3-fach MacAdam Farbverschiebung nach 50.000 Std.
** DALI-Dimmung, sowie höhere Leistungen, auf Anfrage möglich.
